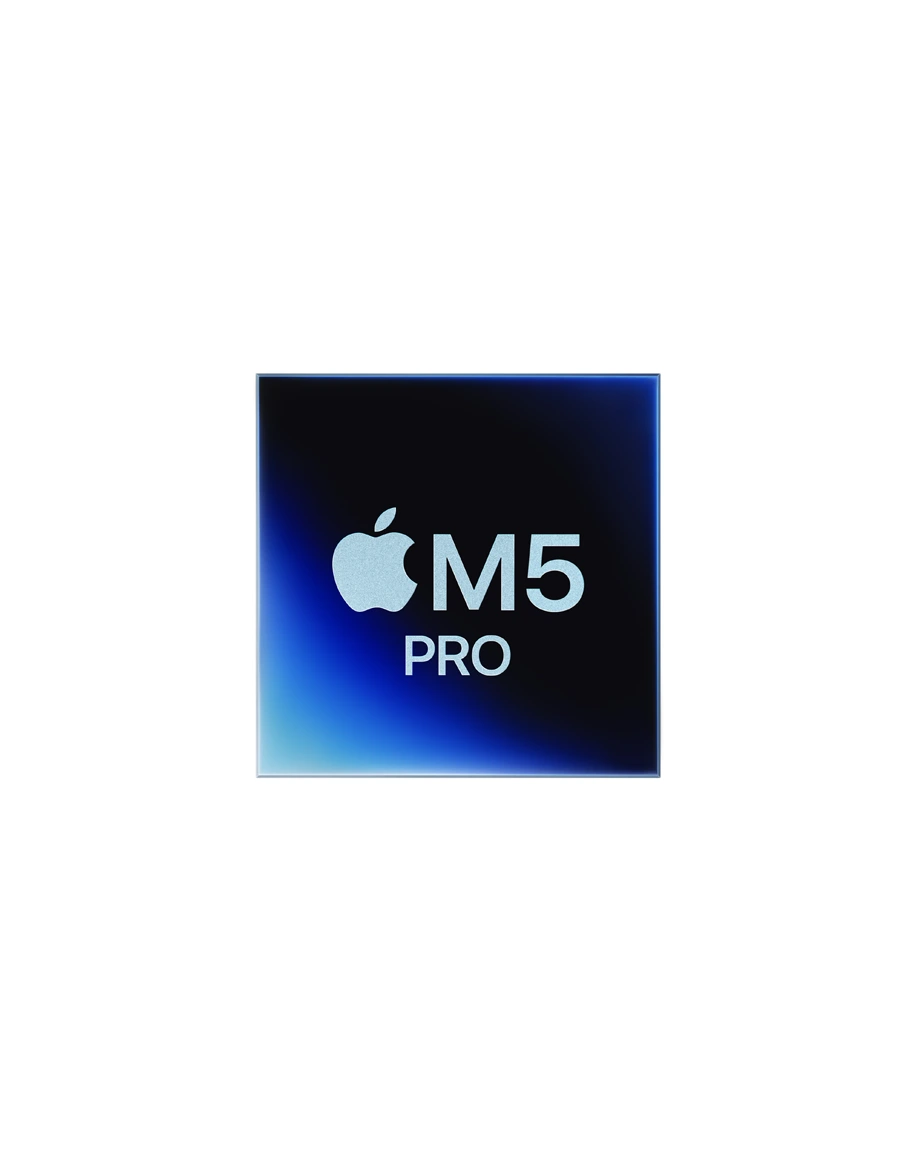

Chip | - Apple M5 Pro chip
- 15-core CPU with 5 super cores and 10 performance cores
- 16-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
- Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
- Configurable to:
- M5 Pro with 18-core CPU and 20-core GPU
- or M5 Max with 18-core CPU and 32-core GPU (460GB/s
memory bandwidth)
- or M5 Max with 18-core CPU and 40-core GPU (614GB/s
memory bandwidth)
|
Memory |
- Configurable to:
- 36GB (M5 Max with 32-core GPU)
- or 48GB (M5 Pro or M5 Max with 40-core GPU)
- or 64GB (M5 Pro with 20-core GPU or M5 Max with
40-core GPU)
- or 128GB (M5 Max with 40-core GPU)
|
Storage | - Configurable to:
- 2TB or 4TB
|

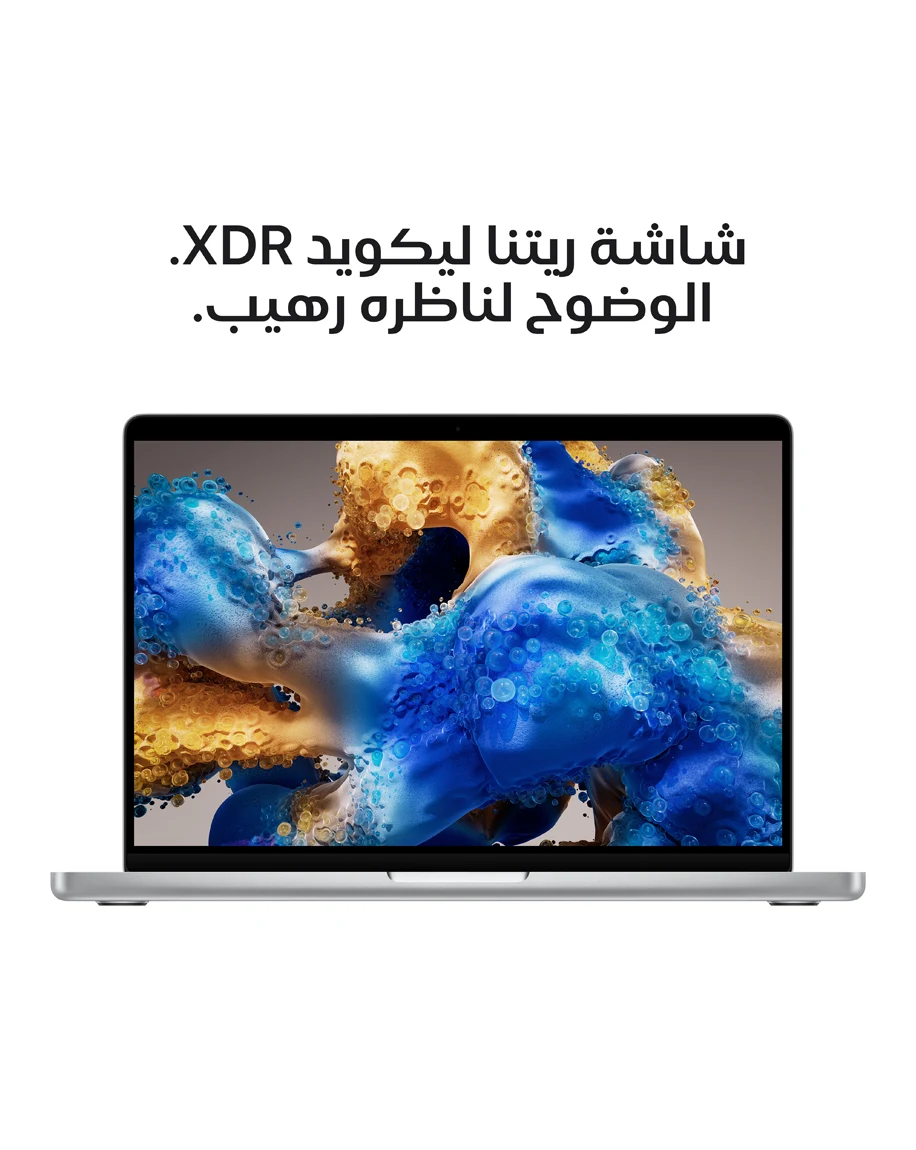

Display | - Liquid Retina XDR display
- 14.2-inch (diagonal) Liquid Retina XDR display; 3024-by-1964
native resolution at 254 pixels per inch
- XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1000 nits sustained full-screen, 1600
nits peak (HDR
content only)
- SDR brightness: up to 1000 nits (outdoor)
- Color
- 1 billion colors
- Wide color (P3)
- True Tone technology
- Refresh rates
- ProMotion technology for adaptive refresh rates up to
120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz,
60.00Hz
- Configurable with:
- Nano-texture display
|
Battery and Power | - M5 Pro
- Up to 22 hours video streaming
- Up to 14 hours wireless web
- 72.4-watt-hour lithium-polymer battery
- 70W USB-C Power Adapter (included with M5 Pro with
16-core GPU)
- 96W USB-C Power Adapter (included with M5 Pro with
20-core GPU, configurable with M5 Pro with 16-core GPU)
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with 96W USB-C Power Adapter or
higher
|

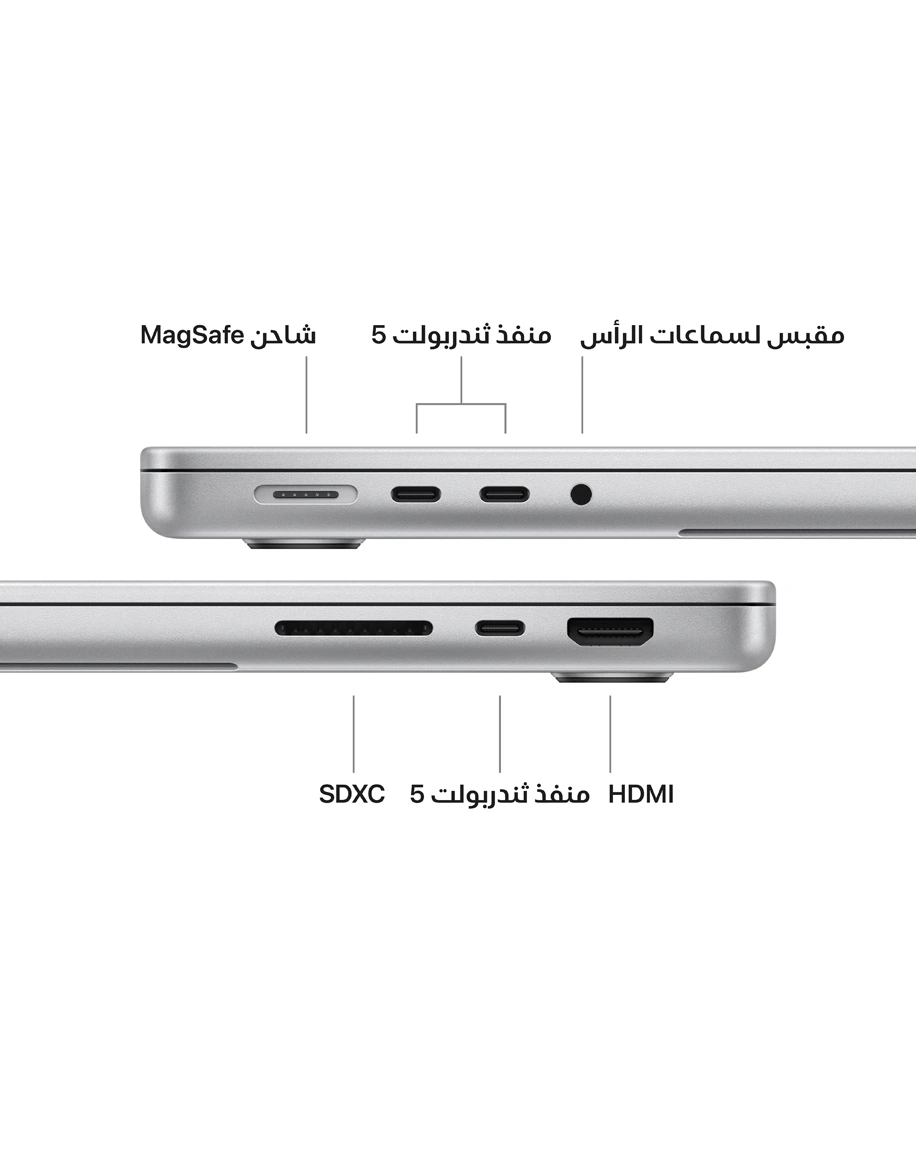

Charging and Expansion | - SDXC card slot
- HDMI port
- 3.5 mm headphone jack
- MagSafe 3 port
- M5 Pro and M5 Max
- Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
|
External Display Support | - M5 Pro
- Supports up to three external displays over any
combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or
4K at 144Hz or
- One display up to a native resolution of 8K at 60Hz or 5K
at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K
at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single
Thunderbolt port
- Simultaneously supports the built-in display at full
native resolution
|
Video Playback | - Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10+/HDR10, and HLG
|
Audio Playback | - Supported formats include AAC, MP3, Apple Lossless, FLAC,
Dolby Digital, Dolby Digital Plus, and Dolby Atmos
|

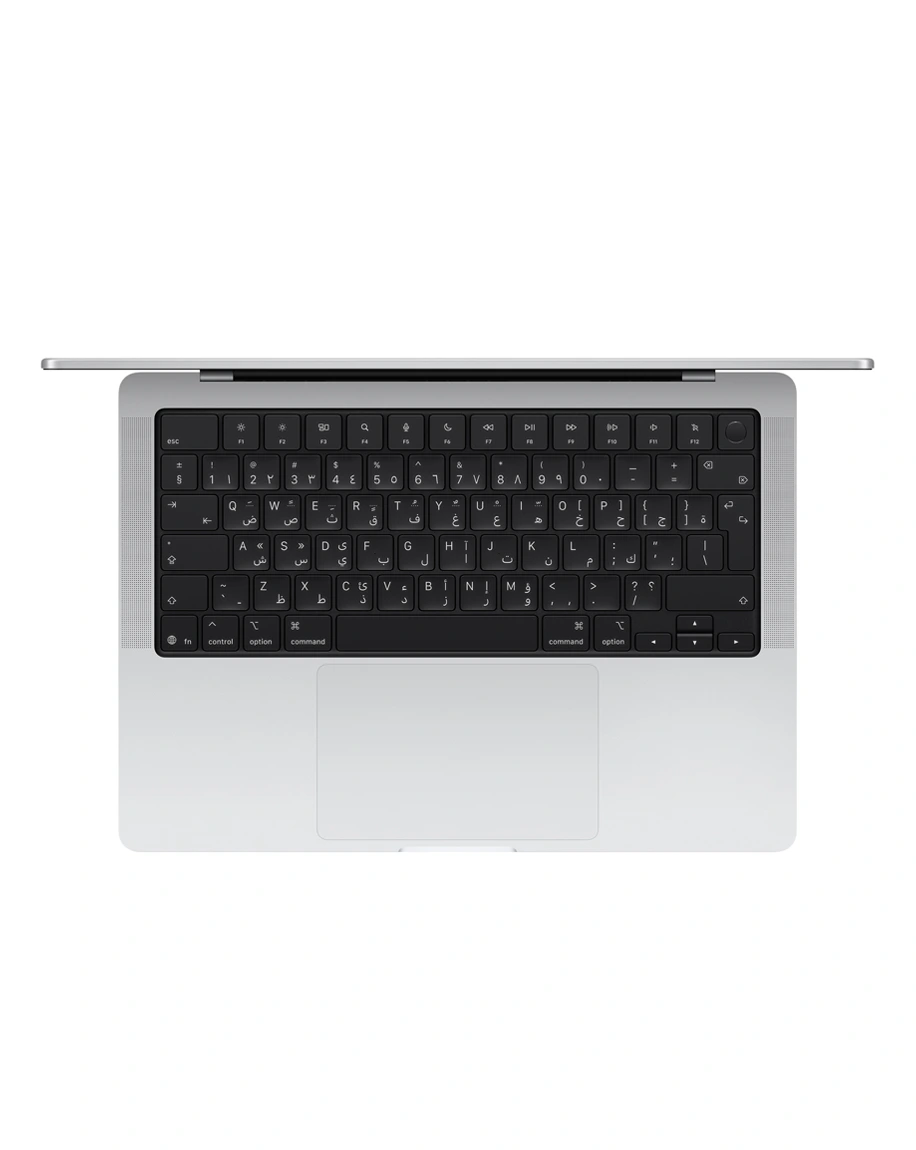

Keyboard and Trackpad | - Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12
full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and
pressure-sensing capabilities; enables Force clicks, accelerators,
pressure-sensitive drawing, and Multi-Touch gestures
|
Wireless | - M5 Pro and M5 Max
- Apple N1 wireless networking chip
- Wi-Fi 7 (802.11be)
- Bluetooth 6
- Thread networking technology
|
Camera | - 12MP Center Stage camera with support for
Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
|
Audio | - High-fidelity six-speaker sound system with
force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or
video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using
supported models of AirPods, AirPods Pro, and AirPods Max
- Studio-quality three-mic array with high signal-to-noise
ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for
enhanced voice clarity in audio and video calls
- 3.5 mm headphone jack with advanced support for
high-impedance headphones
- HDMI port supports multichannel audio output
|
Operating Requirements | - Line voltage: 100V to 240V AC
- Frequency: 50Hz to 60Hz
- Operating temperature: 10° to 35° C (50° to 95° F)
- Storage temperature: –25° to 45° C (–13° to 113° F)
- Relative humidity: 0% to 90% noncondensing
- Operating altitude: tested up to 3000 meters (10,000
feet)
- Maximum storage altitude: 4500 meters (15,000 feet)
- Maximum shipping altitude: 10,500 meters (35,000
feet)
|
Size and Weight | - Height: 1.55 cm (0.61 inch)
- Width: 31.26 cm (12.31 inches)
- Depth: 22.12 cm (8.71 inches)
- Weight (M5 Pro): 1.60 kg (3.5 pounds)
|

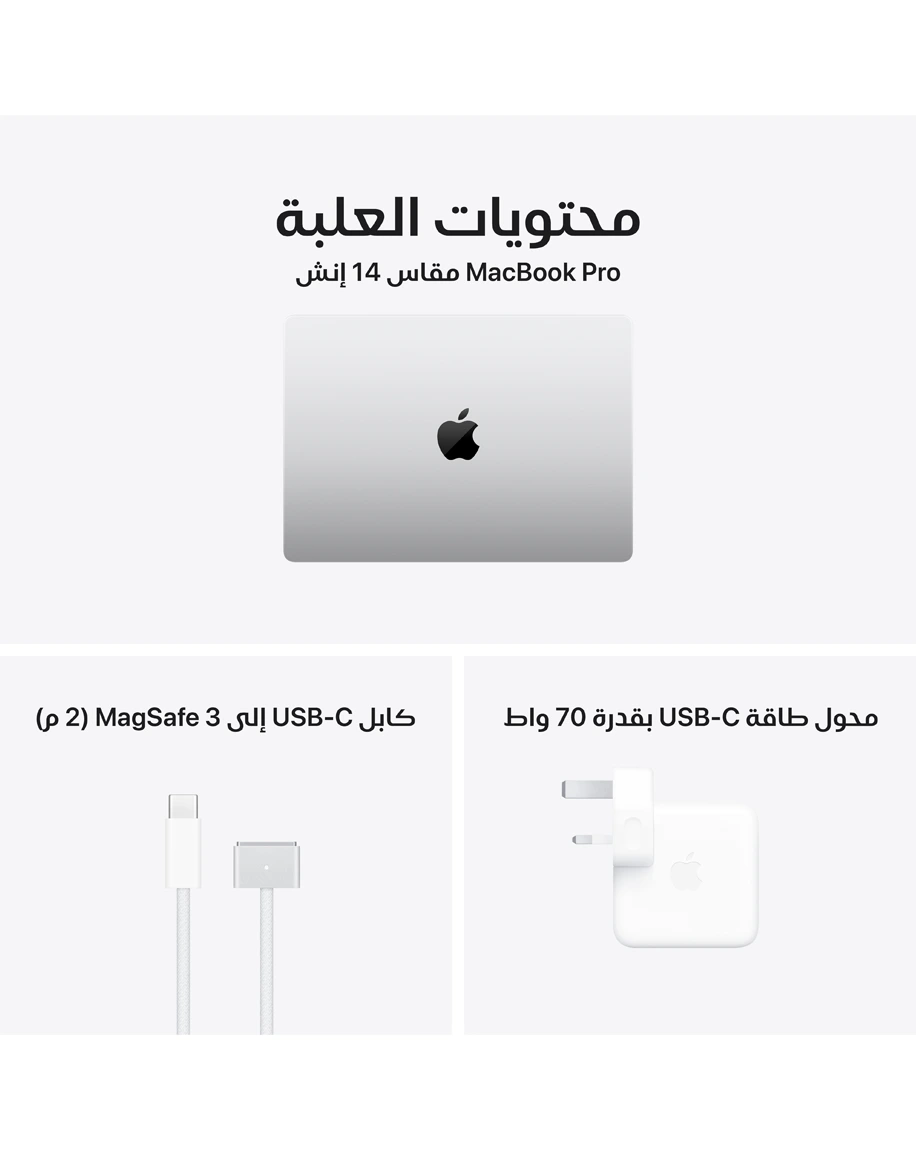

In the Box | - M5 Pro with 16‑core GPU
- 14-inch MacBook Pro
- 70W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
|
